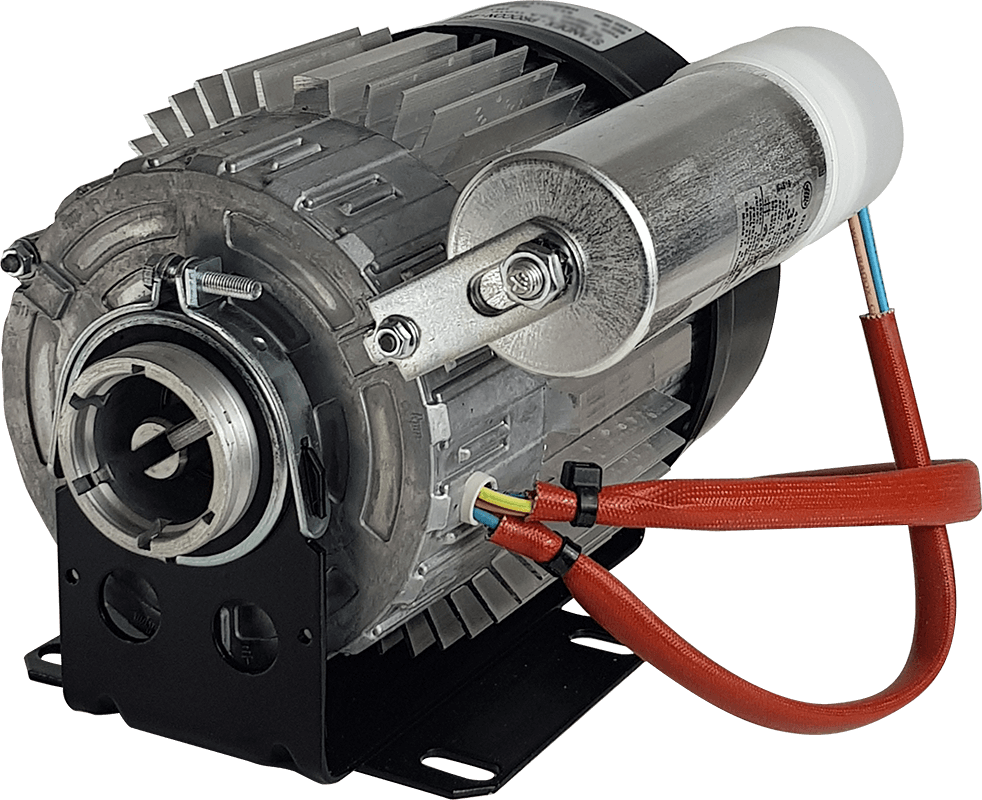

AC PSC Motor- 709
Product Type: Water Treatment
1650RPM
230V
Znode Multifront
Piece
1360RPM
IP30
18.74lb (8.5Kg)
1
Motor
709
Motor
560W
0.75
Single Phase
0.75
PSC
UL & CE
4
Clamp-On
F
IMB3
4A
4.2A
14?F
60dB(a)
85014020
50/60Hz
External Fan Cooled
450VAC
PROCON
AC
Documents
- Details
- Features
- Applications
- Documents
Motor Speed 2
1650RPM
Motor Voltage 1
230V
Vendor
Znode Multifront
UOM
Piece
Motor Speed 1
1360RPM
Motor Protection
IP30
Product Weight
18.74lb (8.5Kg)
Product Family Sub Group
1
Product Family
Motor
Product Code
709
Product Classification
Motor
Motor Power 1
560W
Motor Power 2
0.75
Motor Phase
Single Phase
Motor Voltage 2
0.75
Motor Type
PSC
Agency Approvals
UL & CE
Motor Poles
4
Motor Mount Type
Clamp-On
Motor Insulation
F
Motor Design
IMB3
Motor Current 2
4A
Motor Current 1
4.2A
Motor Capacitor
14?F
Max Sound Level
60dB(a)
HSS Commodity Code
85014020
Motor Hertz
50/60Hz
Motor Cooling
External Fan Cooled
Motor Capacitor Voltage
450VAC
Brand
PROCON
Motor AC/DC
AC
