- Rotary Vane Pump Co 207- 732A060F11CB

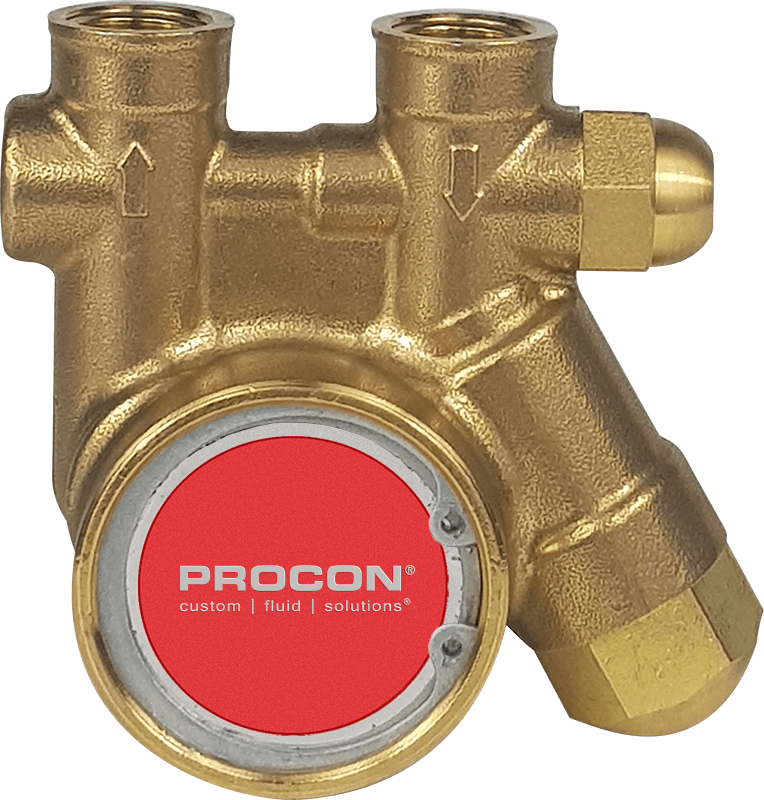

Rotary Vane Pump Co 207- 732A060F11CB
Product Type: Other Industries
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
1.48lb (0.67Kg)
60dB(a)
100psi
0.35hp (261W)
1000RPM
Pump
732A060F11CB
STD Rotary Vane Pump
V9
250psi
100 to 150psi (7 to 10 BAR)
Clockwise
Piece
Bypass- Ultem
Balanced- External adjust
Znode Multifront
6.6ft
160°F
180LPH
100psi
Co 207
Stainless Steel
Clamp-On
G 3/8"
Non Balances Ceramic/Carbon
-4°F
60GPH
100cP
2400RPM
PROCON
Double Flat
3.3ft
2pH
84138100
- Details
- Features
- Applications
- Documents
Product Weight
1.48lb (0.67Kg)
Max Sound Level
60dB(a)
Max Static Pressure PSI
100psi
Max Mechanical Power Requirement
0.35hp (261W)
Min Speed
1000RPM
Product Classification
Pump
Product Code
732A060F11CB
Product Family
STD Rotary Vane Pump
Product Family Sub Group
V9
Max Discharge Pressure
250psi
Relief Valve Set Pressure Range
100 to 150psi (7 to 10 BAR)
Rotation
Clockwise
UOM
Piece
Valve Type
Bypass- Ultem
Valve Configuration
Balanced- External adjust
Vendor
Znode Multifront
Wet Suction Lift
6.6ft
Max Fluid Temperature
160°F
Flow Rate LPH
180LPH
System Pressure (max)
100psi
Series
Co 207
Material
Stainless Steel
Mount
Clamp-On
Standard Ports
G 3/8"
Seal Type
Non Balances Ceramic/Carbon
Min Fluid Temperature
-4°F
Flow Rate GPH
60GPH
Max Fluid Viscocity
100cP
Max Speed
2400RPM
Brand
PROCON
Drive Configuration
Double Flat
Dry Suction Lift
3.3ft
Fluid Acidity
2pH
HSS Commodity Code
84138100
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
