- Rotary Vane Pump Series 6- 106N420R11XX

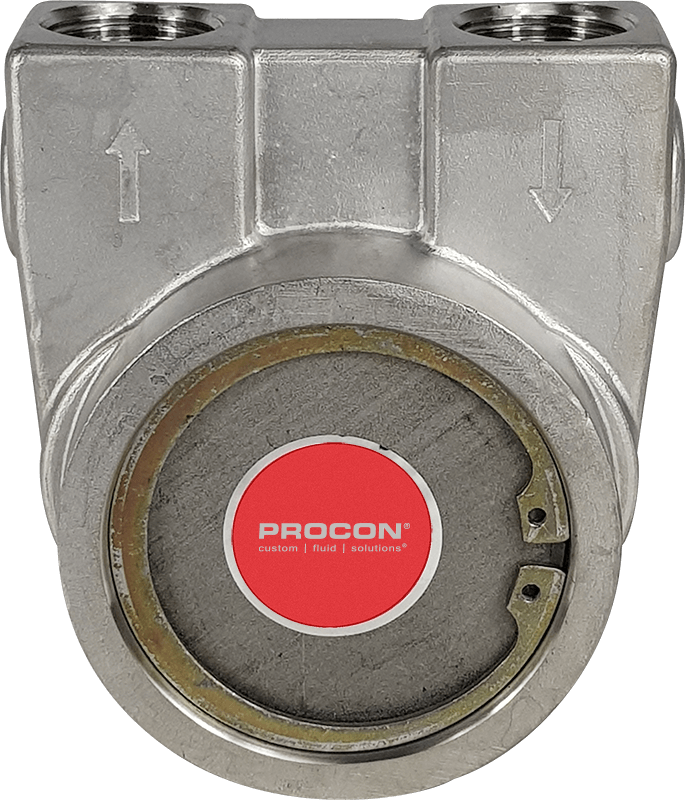

Rotary Vane Pump Series 6- 106N420R11XX
Product Type: Water Treatment
420GPH
1260LPH
250psi
Series 6
Stainless Steel
Bolt-On
NPT 1"
Non Balances Ceramic/Carbon
-4°F
160°F
100cP
2100RPM
PROCON
Keyway
0ft
2pH
84138100
Carbon
250psi
60dB(a)
100psi
1.75hp (1304W)
1000RPM
Without Vane Pins
Pump
106N420R11XX
STD Rotary Vane Pump
V6
be9d935d-a0b2-4ae9-8e81-f75e2b4f6226F1003.pdf
13.05lb (5.92Kg)
Clockwise
Piece
No Relief Valve
Znode Multifront
0ft
- Details
- Features
- Applications
- Documents
Flow Rate GPH
420GPH
Flow Rate LPH
1260LPH
System Pressure (max)
250psi
Series
Series 6
Material
Stainless Steel
Mount
Bolt-On
Standard Ports
NPT 1"
Seal Type
Non Balances Ceramic/Carbon
Min Fluid Temperature
-4°F
Max Fluid Temperature
160°F
Max Fluid Viscocity
100cP
Max Speed
2100RPM
Brand
PROCON
Drive Configuration
Keyway
Dry Suction Lift
0ft
Fluid Acidity
2pH
HSS Commodity Code
84138100
Internal Component Material
Carbon
Max Discharge Pressure
250psi
Max Sound Level
60dB(a)
Max Static Pressure PSI
100psi
Max Mechanical Power Requirement
1.75hp (1304W)
Min Speed
1000RPM
No Vane Pins
Without Vane Pins
Product Classification
Pump
Product Code
106N420R11XX
Product Family
STD Rotary Vane Pump
Product Family Sub Group
V6
Product Performance
be9d935d-a0b2-4ae9-8e81-f75e2b4f6226F1003.pdf
Product Weight
13.05lb (5.92Kg)
Rotation
Clockwise
UOM
Piece
Valve Configuration
No Relief Valve
Vendor
Znode Multifront
Wet Suction Lift
0ft
